The I-240 integrated offers versatility, convenience and realism with an appropriate frequency response, low distortion & precise harmonic reproduction.

At a Glance

The I-240 is a tube integrated amplification and pre-amplification system (based on the legendary U280 ASB, which is a reference in the audio world) that recreates realistic and dynamic scenarios thanks to the fusion between the application of cutting-edge technology and the tonal benefits of the tubes: the formula of Casa Margules’ characteristic sound.

This one-of-a-kind high-end integrated amplifier was handcrafted with materials and components of the highest quality, observing the strictest production processes and looking after the smallest detail.

Due to its manufacturing philosophy, the I-240 integrated amplifier merges design with functionality, offering versatility, convenience and, most of all, a realistic sound with an appropriate frequency response, low distortion and precise harmonic reproduction.

In the same way, this amplifier will allow you to enjoy a captivating, engaging and natural sound since its conceptualization and development are built on the implementation of our Neuro-Acoustic Alignment technology (ANA®) based on the way the human brain perceives sound, prioritizing harmonic structure over fundamental tone.

Features

The I-240 is a tube integrated amplification and preamplification system (based on the legendary U280 ASB, which is a reference in the audio world) that recreates realistic and dynamic scenarios thanks to the fusion between the application of cutting-edge technology and the tonal benefits of the tubes: the formula of Casa Margules’ characteristic sound.

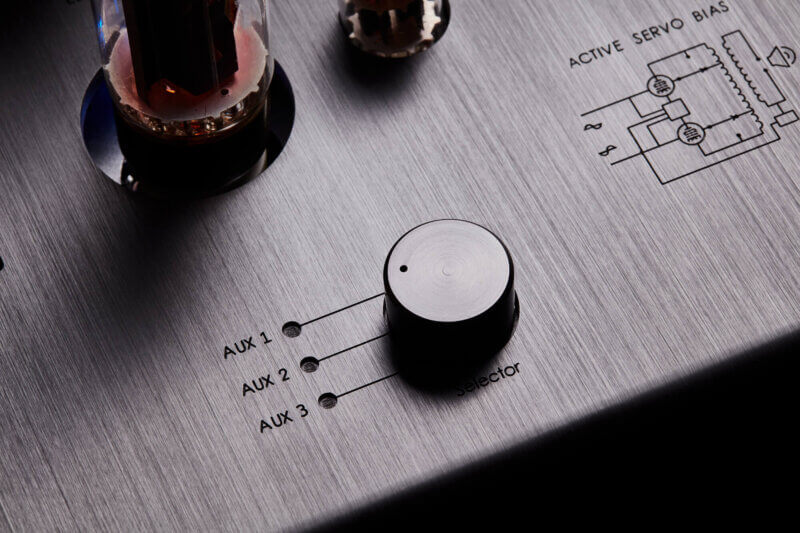

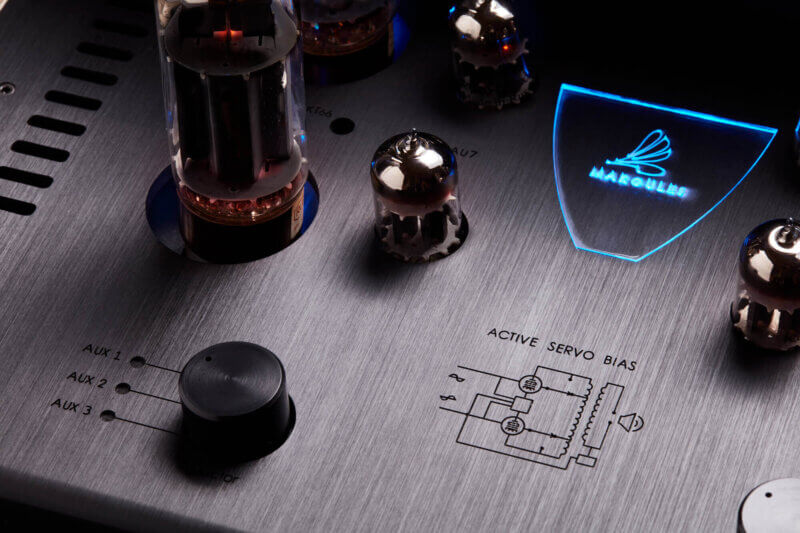

CLASS-A OPERATION AND ACTIVE SERVO BIAS

This amplifier incorporates our exclusive Active Servo Bias (patent pending), which guarantees an optimal operation since it does not require any polarization adjustment, always operating at pure Class-A to ensure a detailed sound scenario.

By continuously adjusting the polarization based on the signal, this circuit radically extends the useful life of the output tubes and allows them an ideal operation, which in addition optimizes energy consumption by avoiding overheating.



ULTRA-LINEAR OPERATION

The output tubes are configured to operate in ultra-linear mode in order to improve the efficiency in amplification.



SHUNT REGULATED POWER SUPPLIES

The power supplies for the small-signal stages are independent and of the SHUNT type.

By not having a control loop circuit, they avoid the induction of harmonics, guaranteeing the integrity of the audio signal.

Another advantage of the SHUNT power supplies lies in the carefully designed circuit to protect them from the common and uncommon defects of the tubes, which makes them practically indestructible.



ZERO NEGATIVE FEEDBACK

On the other hand, the I-240 avoids the use of negative feedback, a common practice that results in a loss of details and sound richness.



BACK ELECTROMOTIVE FORCE SENSOR

In order to improve the damping factor without recurring to negative feedback, Margules Audio has developed the Back Electromotive Force Sensor system or BEFS, which changes the output impedance of the amplifier per the load requirement.

The optimal impedance of the equipment ranges between 4 and 8 Ohms, which is already pre-set. Hence, the BEFS together with the Active Servo Bias allow the amplifier to drive with excellent dynamics and controlled bass the difficult loads in low-efficiency or low-sensitivity speakers.



CONNECTIVITY

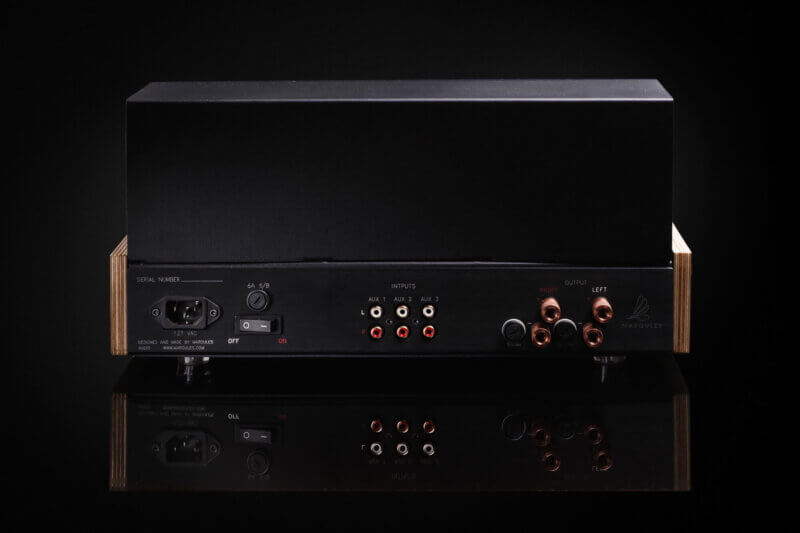

As to connectivity, the I-240 comes with three different line inputs and an attenuation or high precision volume control, which allow the use of the equipment with several sources.



NEURO-ACOUSTIC ALIGNMENT (ANA®)

The ANA® technology (Neuro-Acoustic Alignment) is one of Margules’ technological innovations developed from a fundamental principle: the human brain perceives sound by prioritizing the harmonic structure above fundamental tone; that is, it focuses on how humans perceive sound and not on how we measure it.

This technological advance originates from the engaging sound theory and is based on the way in which our brain decodes the information from the sound waves through the ears: when sounds are closer, they keep us focused due to the relation between perception and sound, the distance at which we perceive them and their intelligibility, whereas distant sounds, even when intelligible, do not catch our attention and are easily ignored.

Our ANA® technology is designed to achieve a realistic sound, with a wide frequency response, low distortion and precise harmonic reproduction, optimizing to the utmost the relationship between the source and the receiver, so that you can enjoy your music in a way you have never experienced before.



Specifications

Nominal power per channel 25 Watts @ 8 Ohms
Frequency response + 0 / − 3 dB 10Hz – 40KHz
Bandwidth at full power 30 – 30,000 Hz
THD 0.15% at 1 Watt 0.7% at Full Power
Electrical Consumption Stand-by mode:  145 Watts
Maximum Consumption 350 Watts
Dimensions 40 cm x 38 cm x 19 cm
Tubes 4 x EL34 (6L6, KT66, KT77, 6CA7)
4 x 12AU7
Weight 48lbs
