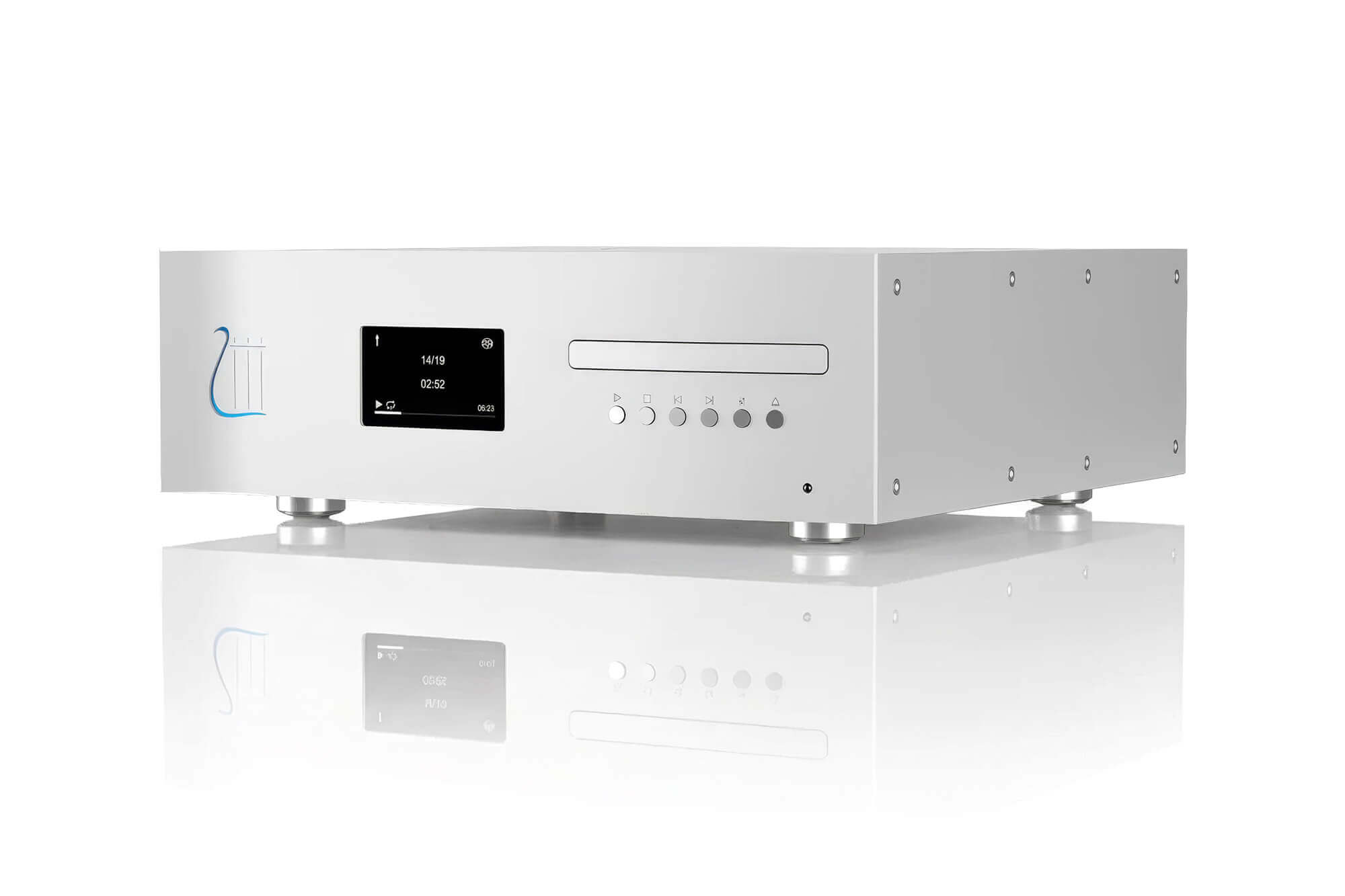

Orpheus Lab A Zero PS SACD Player and DAC

From $25,900

Handcrafted in Switzerland with technology from Orpheus’ flagship line, this SACD player and DAC reveals every layer of depth and emotion in your music.

Our state-of-the-art SACD Player is engineered to unveil the true potential of Super Audio CDs.

A testament to the pursuit of perfection. It delivers an unparalleled soundstage with exquisite detail, depth, and clarity.

Immerse yourself in a world where every note resonates with emotion. This SACD Player transforms your music collection into a living, breathing masterpiece, revealing textures and nuances that stir the soul. Designed to captivate both the ears and the heart, its presence elevates your space into a sanctuary for pure musical expression.

Purity Within Everyone’s Reach

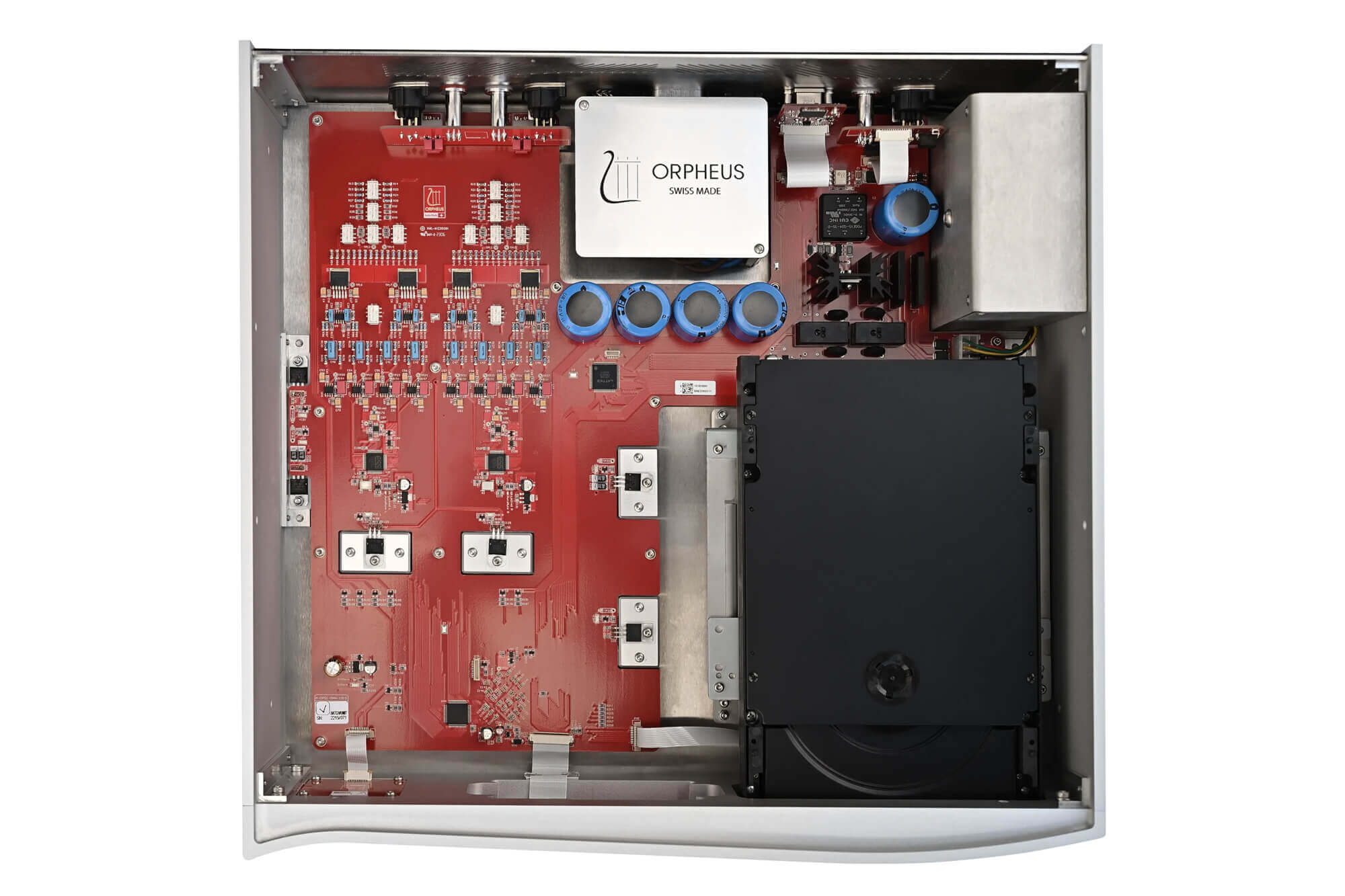

This SACD player from the Absolute line spares no expense in quality, drawing inspiration from the state-of-the-art technologies of our prestigious Heritage line. It features a high-performance D&M SACD mechanism, synchronized by an ultra-precise quartz. To broaden its versatility with digital sources, the system is equipped with a USB input (PCM/DSD). The pair of DACs, integrated on a single board and crafted in a true dual-mono architecture, is entrusted with reviving digitized music.

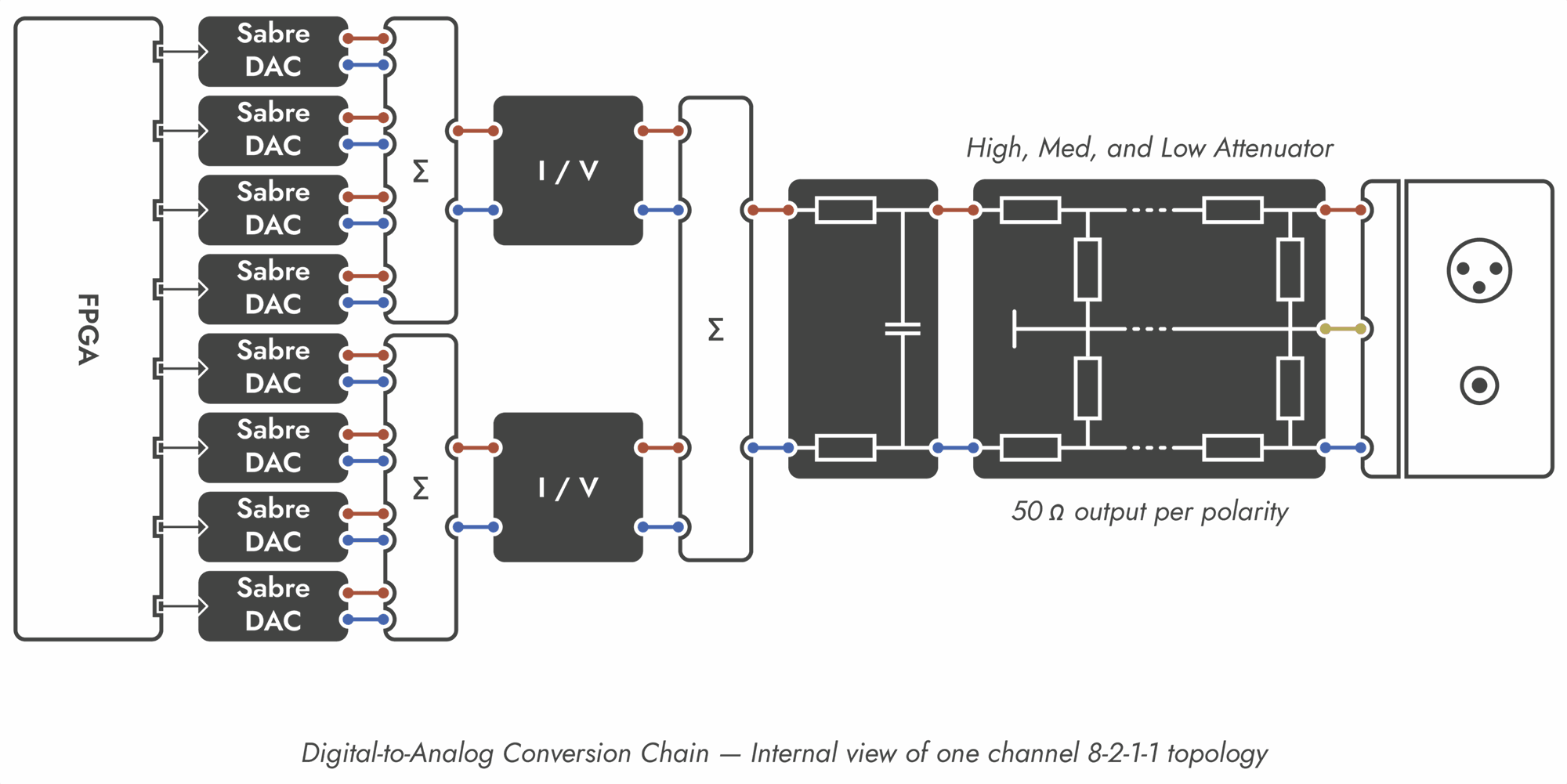

The digital-to-analog converter technology is based on the innovative 8-2-1-1 topology, inherited from that used in the Heritage line. This architecture incorporates eight synchronous DACs operating in current mode, meticulously grouped into two clusters to enhance the signal dynamics during the current-to-voltage conversion, thus yielding two distinct voltage groups. These two groups are then artfully recombined into a single signal path before passing through the exclusive “Revival Filter,” which breathes new life into the music. Following this revitalization, the voltage signal requires the utmost delicate handling, remaining untouched by any active components. Consequently, the final attenuator responsible for adjusting the output level is composed exclusively of high-quality metal film resistors, each exhibiting an exceptional tolerance of 0.1 %. This attenuator based on CRQL topology guarantees an output impedance of 50 Ω per polarity in every configuration.



The Revival Filter restores the breath of life to the sound that it had before digitization, thanks to a meticulous attention that has been dedicated to phase optimization.

To satisfy most preamplifiers on the market, the final stage allows you to choose between three output levels: “High”, “Med” and “Low”

Specifications

Mechanism Technology
System Super Audio Compact disc player
SACD D&M
Compatible Disc Types SACD, CD, CD-R, CD-RW
Digital Input

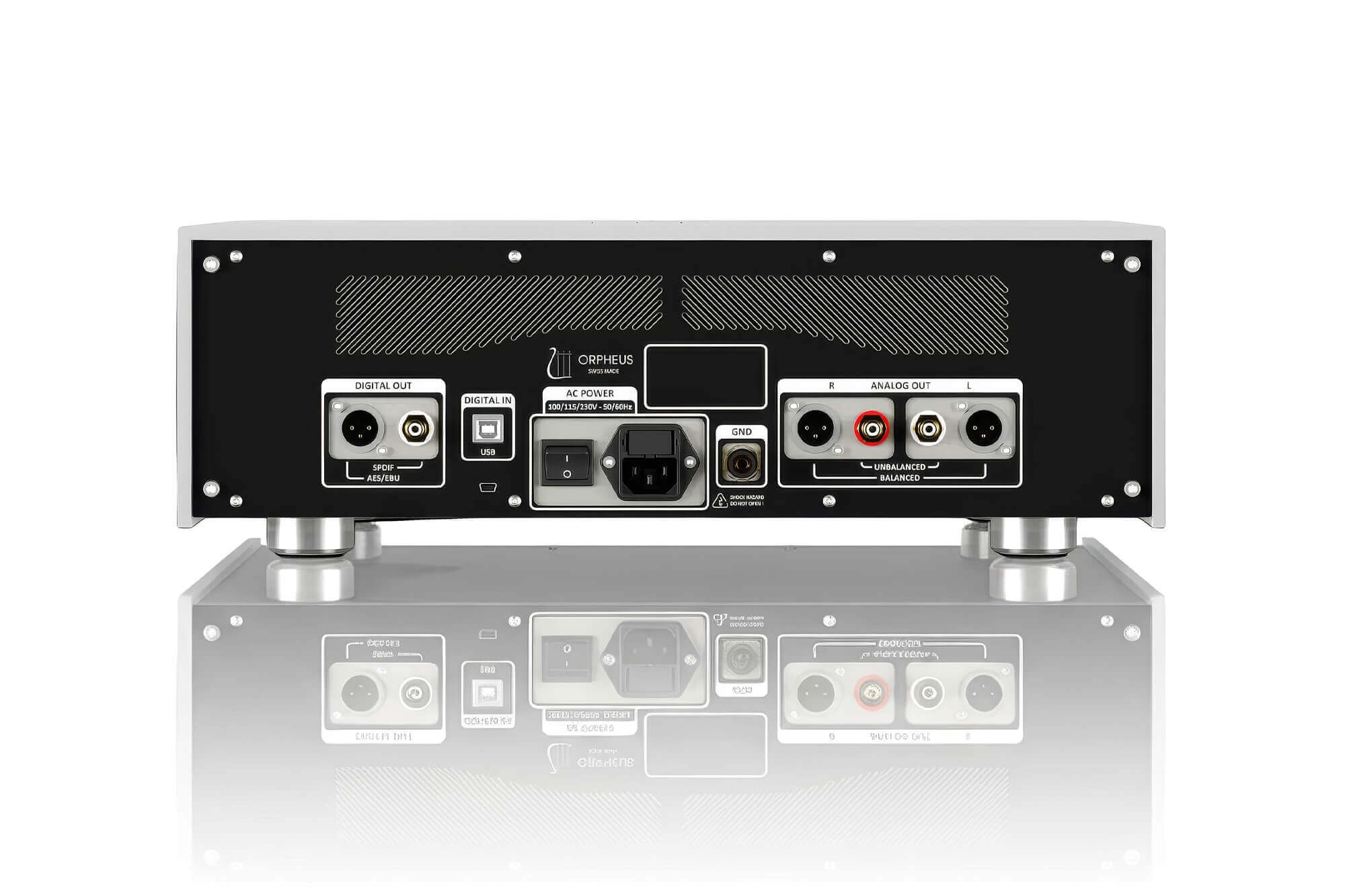

Connections 1x Audio USB type B
Supported Sample Rates PCM: up to 384kHz & 32-bit; DSD: up to DSD256
Analog Output
Connections 1x Balanced, 1x Unbalanced (Stereo)
Output Voltage (Bal/Unbal) 4.8 Vrms / 2.4 Vrms
THD+N < 0.0003 % (-110.5 dB) @ 1 kHz, 0 dBFs
Crosstalk, L To R Or R To L < -126 dB
Clip To Noise Ratio (Input Bal) < -126 dB
Clip To Noise Ratio (Input Unbal) < -126 dB
Output Impedance Balanced: 50 Ω; Unbalanced: 25 Ω
Phase Inversion 0° or 180°
Technology Used
Real dual mono DAC topology. 8 DAC per channel combined to reduce the output noise floor. Three preconfigured output voltage adjustment levels without loss of quality in any mode.
Power
Nominal Line Voltage 100, 115 or 230 Vac
Input Voltage Range ±8 %
Maximum Power Consumption 100 W
Standby Consumption Less than 1 W
Size & Weight
Height 148 mm
Depth 420 mm
Width 440 mm
Weight (Power Supply Included) 22 kg
Safety Features
Automatic mute if sensing a drop in the mains supply voltage.
