Vicoustic Multifuser Wood
An acoustic diffuser panel that provides reflection on vertical and horizontal planes, for sound diffusion in walls and ceilings.
The Multifuser collection is perfect for use in venues such as concert halls, hi-fi rooms, and recording studios, where effective diffusion is often required, without too much absorption occurring at the same time.
The 36 and the 64 models are made of two and four parts, respectively. Each part can be rotated in different directions so that a uniform, omnidirectional scattering of sound is achieved, with particularly effective diffusion of mid and high frequencies.

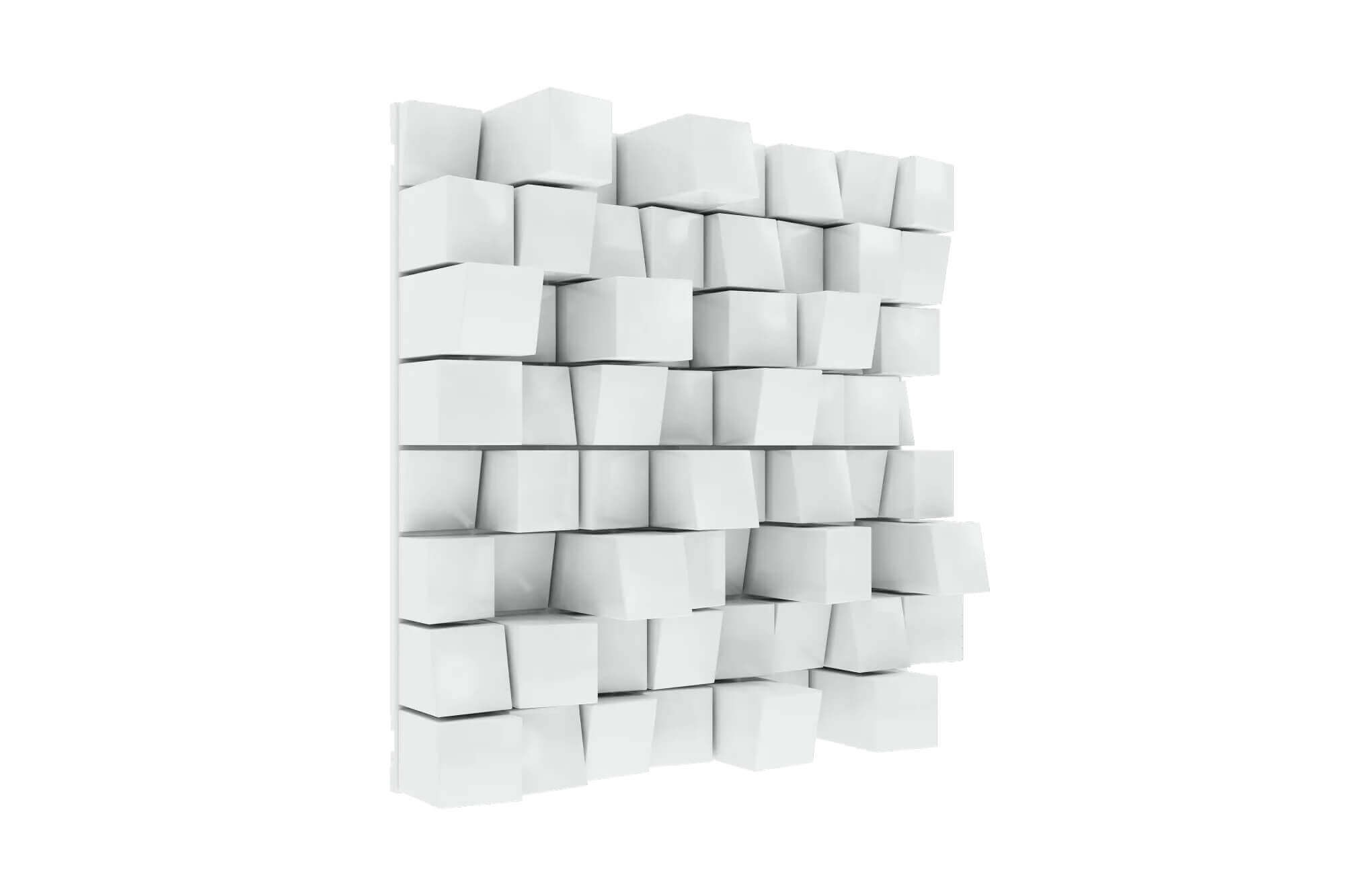

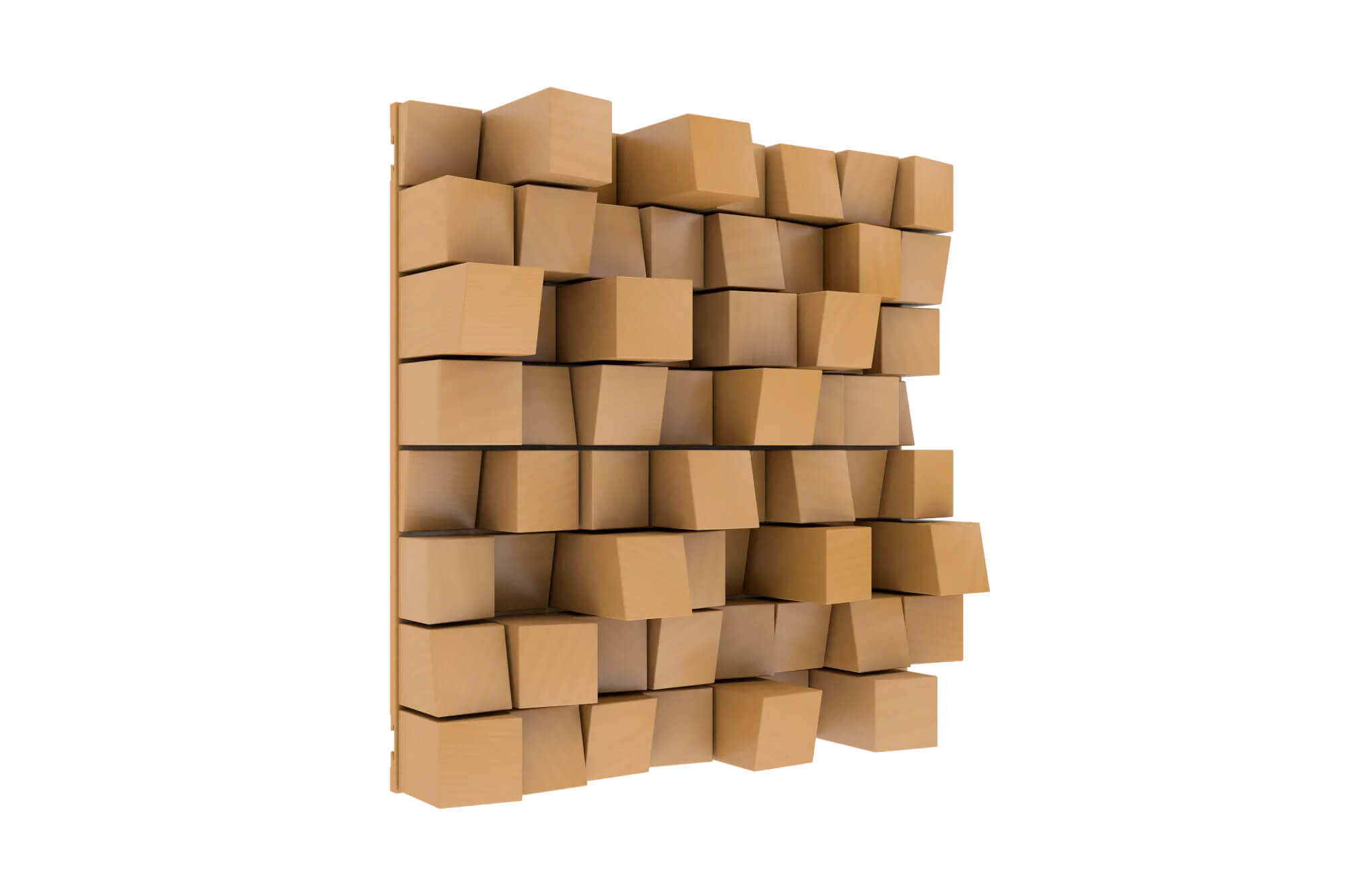

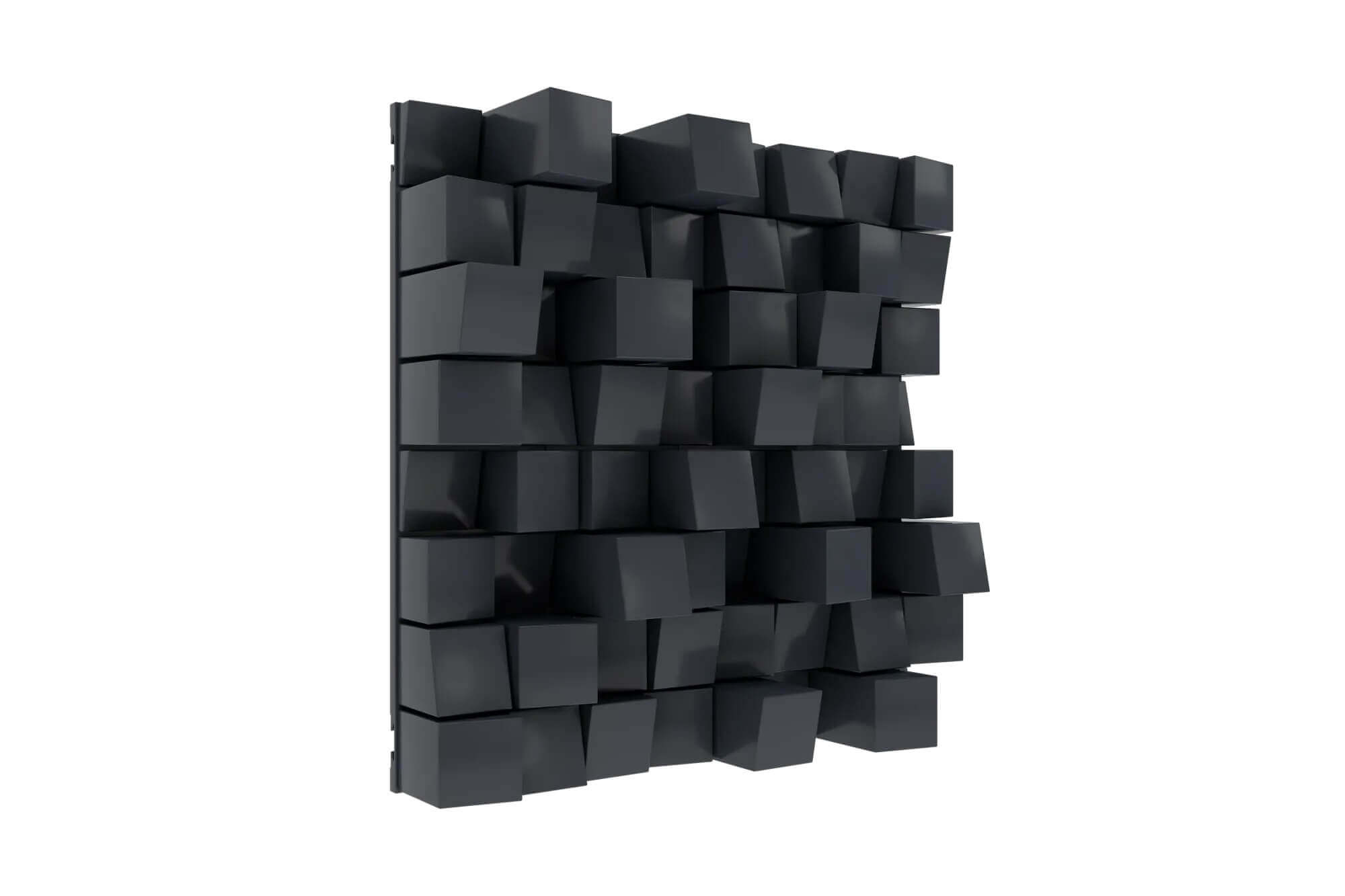

As well as its acoustic efficiency, the panel’s attractive appearance makes it suitable for use in a range of settings. Available in Natural Wood, Black, White, Metallic Copper and Metallic Gold.
The Natural Wood diffuser is made from solid wood, while the Matte and Metallic colors are made with Lacquered MDF.
Multifuser Wood MKII panels can be fixated to the ceiling exclusively using the new fixation system VicFix Suspension Profile (sold separately).
Main Info
Dimensions: 36 – 595×595×96mm / 23.4″×23.4″×3.8″; 64 – 595×595×143mm / 23.4″×23.4″×5.6″ (L×H×W, per panel)
Weight: 36 – 12.10kg / 26.68lbs; 64 – 17.55kg / 38.69lbs (per panel)
Raw Material: Natural Wood – Solid Wood and Plywood; Matte and Metallic colors – Lacquered MDF and Plywood
Scratch Resistance: No
Performance
Functionality: Diffusion
NRC: 36 – 0.25; 64 – 0.35
Fire Rate
Europe: Euroclass E
USA: Class B (ASTM-E84)
Packaging Information
Units/Box: 1 unit/box
Box Dimensions (L×H×W): 36 – 660×355×175mm / 26″×14″×6.9″; 64 – 665×385×235mm / 26.2″×15.2″×9.3″
Box Gross Weight: 36 – 13.1kg / 26.2lbs; 64 – 18.9kg / 37.7lb
Installation
Fixation: VicFix J Profile (included), VicFix Suspension Profile 595mm or 1190mm (ceiling)
Place: Walls, Ceiling
