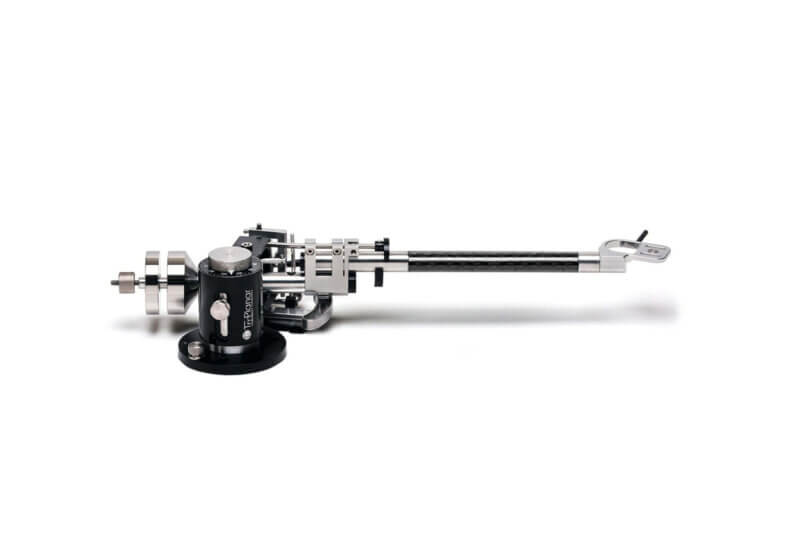

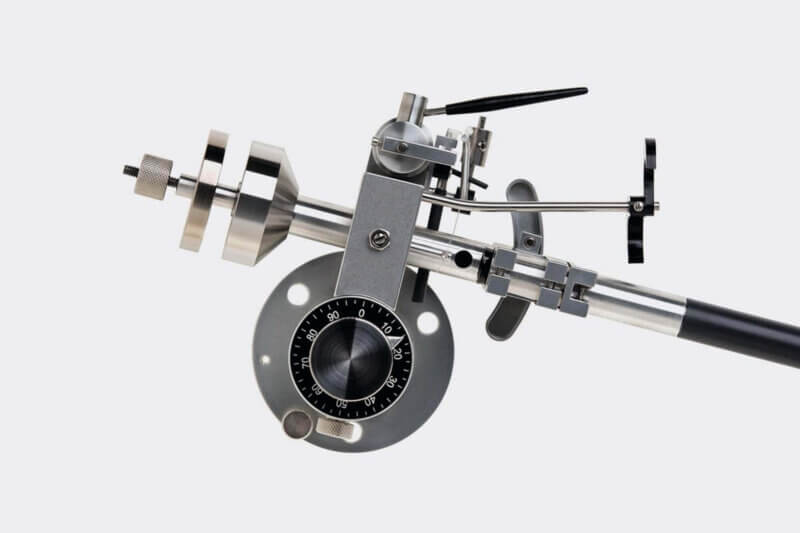

A tonearm inheriting the advancements of the Tri-Planar U-12 featuring a 9.8″ carbon fiber arm. Based on the award winning tonearm with over 55 years of design excellence.

Features

  • 9.8″ (250 mm) effective length
  • Avionic gimbal bearings design
  • Silver internal tonearm wiring
  • Carbon fiber wand with coaxial damping
  • Adjustable Vertical Tracking Angle (VTA)
  • Adjustable Azimuth
  • Damped head-shell
  • Clamping yoke design that firmly couples the arm-tube to the bearing tube
  • Bearings at record height
  • Silicone-fluid trough with adjustable dip stick adjustment
  • Hardened and polished needle cones
  • Progressive anti-skating design
  • Sophisticated system of decoupled counter weights
  • Easy 3-screw installation, with no large VTA hole
  • Available in black or silver color
Specifications
Type: Avionic gimbal bearings design
Wand: Carbon Fiber
Effective Length: 250mm
Pivot-to-spindle distance: 233.5mm
Overhang: 16.5mm
Offset angle: 22°
Effective mass: 11g
Bearing offset angle: 22°

Tri-Planar


With over 55 years in research, design and production, Tri-Planar Ultimate tonearms continue to be rated among the world's best. Its unique and meticulously handcrafted dual-pivot design offers maximum adjustability and watch-like precision upon all three planes of geometry and provides unrivaled tracking, transparency, and resolution. All tonearms are engineered and assembled in Minneapolis, MN.
